Beskrivelse

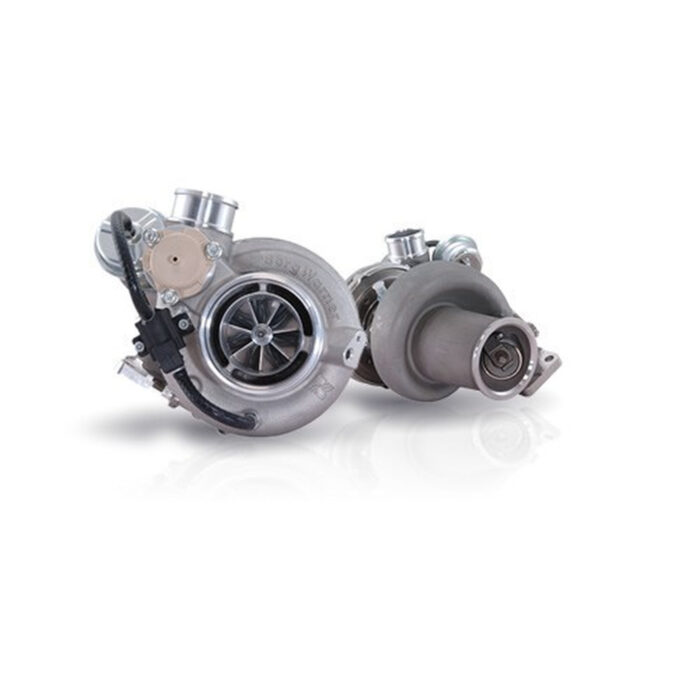

Turbo BorgWarner EFR-6258

Genuine EFR turbocharger

Turbocharger with various flanges, A/R values and wastegate options

Performance rating: 225 – 400 HP
Compressor wheel: Inlet 49,6mm, outlet 61,4mm
Turbine wheel outlet: 58mm
Turbine housing: Available with T25, V-Band or T3 flanged exhaust housing
Material cartridge: Available in cast steel or aluminium

BorgWarner EFR turbocharger has been developed with only one goal in mind: to dominate road, racetrack and quartermile. BorgWarner EFR turbocharger are equipped with state of the art high-tech features for unbeaten performance.
EFR Turbos are available in 7 different sizes and 4 different turbine housings, covering performance ratings from 250 to 1000HP.
The combination of a high-efficiency compressor wheel, Gamma-Titanaluminid turbine wheel, with ceramic ball bearing technology dramatically raises the bar for motorsports turbochargers and is state of the art in terms of turbocharger technology:

Compressor:
– Forged and milled compressor wheel, extremely lightweight and resistant to highest boost levels, Extended tip technology
– Integrated blow off valve
– Integrated boost solenoid
– 360° rotation via V-band technology
– Prepared socket for speed sensor (optionally available) to monitor compressor wheel speed. Thereby compressor efficiency can be calculated.

CHRA features:
– Dual ceramic ball bearing
– Integrated oil restrictor
– Water cooled

Turbine housing:
– Stainless steel turbine housing
– Gamma-Titanaluminid turbine wheel and shaft, 50% lighter than comparable Inconel turbine wheel and extremely heat resistant up to 1050°C (for comparison: Garrett only up to 950°C)
– High-flow wastegate port
– Internal wastegate (even available for twinscroll turbine housing!)
